产品介绍

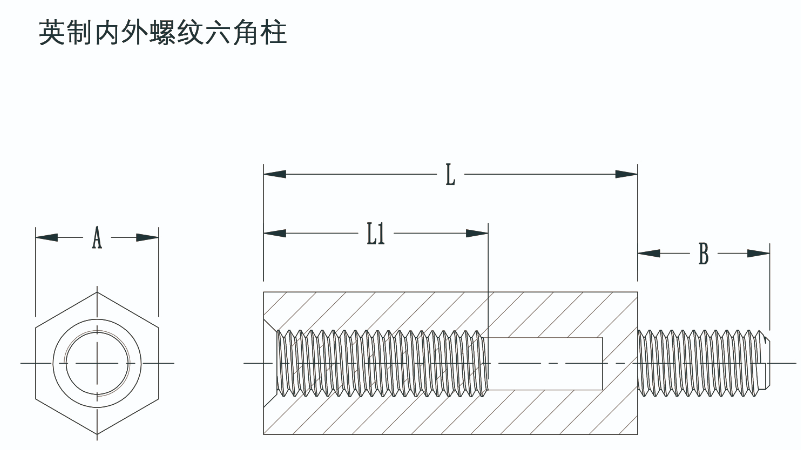

| mm | ||||||
| 产品型号 | 材质/颜色 | 螺纹规格 | A | L | L1 | L2 |
| MTP4-40*1/4 | PA66/本色 | #4-40 | 6.35 | 6.35 | 6 | 4.7 |
| MTP4-40*3/8 | PA66/本色 | #4-40 | 6.35 | 9.53 | 10 | 4.7 |
| MTP6-32*5/8 | PA66/本色 | #6-32 | 7.1 | 15.88 | 10 | 6.35 |
| MTP4408 | PA66/本色 | #4-40 | 6.35 | 8 | 6 | 4.7 |
| MTP4410 | PA66/本色 | #4-40 | 6.35 | 10 | 8 | 4.7 |
| MTP4408-A | PA66/本色 | #4-40 | 6.35 | 8 | 10 | 4.7 |
| MTP4412 | PA66/本色 | #4-40 | 6.35 | 12 | 10 | 4.7 |
| MTP4412-A | PA66/本色 | #4-40 | 6.35 | 12 | 10 | 4.7 |
| MTP4416 | PA66/本色 | #4-40 | 6.35 | 16 | 10 | 4.7 |
| MTP4416-A | PA66/本色 | #4-40 | 6.35 | 16 | 10 | 4.7 |
| MTP4420 | PA66/本色 | #4-40 | 6.35 | 20 | 10 | 4.7 |
| MTP4424 | PA66/本色 | #4-40 | 6.35 | 24 | 10 | 4.7 |
| MTP4428 | PA66/本色 | #4-40 | 6.35 | 28 | 10 | 4.7 |
| MTP4432 | PA66/本色 | #4-40 | 6.35 | 32 | 10 | 4.7 |
| MTP6308 | PA66/本色 | #6-32 | 7.1 | 8 | 6 | 6.35 |
| MTP6310 | PA66/本色 | #6-32 | 7.1 | 10 | 8 | 6.35 |
| MTP6312 | PA66/本色 | #6-32 | 7.1 | 12 | 10 | 6.35 |
| MTP6316 | PA66/本色 | #6-32 | 7.1 | 16 | 10 | 6.35 |
| MTP6320 | PA66/本色 | #6-32 | 7.1 | 20 | 10 | 6.35 |
| MTP6324 | PA66/本色 | #6-32 | 7.1 | 24 | 10 | 6.35 |
| MTP6328 | PA66/本色 | #6-32 | 7.1 | 28 | 10 | 6.35 |
| MTP6332 | PA66/本色 | #6-32 | 7.1 | 32 | 10 | 6.35 |
