产品介绍

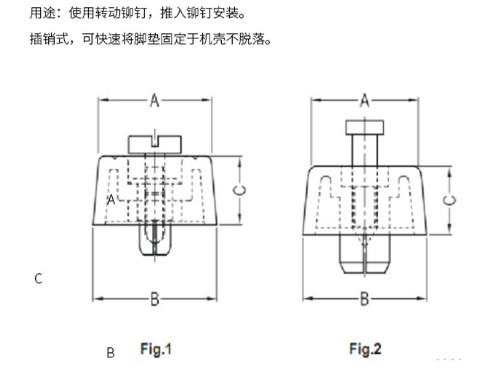

| 型号 | 底座材质 | 板厚 | 铆钉材质 | FIG. | 孔径 | A | B | C |
| SF104 | TPV UL94HB | 1.0-2.3 | PP UL94V2 | 1 | 5.0-5.1 | 18 | 20 | 10 |
| SF111 | TPV UL94HB | 0.3-3.0 | PP UL94V2 | 1 | 5.0-5.1 | 20 | 21 | 8 |
| SF115 | TPV UL94HB | 0.5-1.5 | PP UL94V2 | 2 | 5.0-5.1 | 28 | 30 | 15 |
| SF117 | TPV UL94HB | 0.8-1.5 | PP UL94V2 | 2 | 8.0-8.1 | 18 | 20 | 10 |
| SF118 | TPV UL94HB | 0.8-1.5 | PP UL94V2 | 2 | 8.0-8.1 | 18 | 20 | 10 |
| SF120 | TPV UL94HB | 0.8-1.5 | PP UL94V2 | 2 | 7.8-7.9 | 18 | 20 | 5 |
| SF121 | TPV UL94HB | 5.0-8.0 | PP UL94V2 | 2 | 8.0-8.1 | 20 | 21 | 6 |
| SF123 | TPV UL94HB | 0.8-1.5 | PP UL94V2 | 2 | 8.0-8.1 | 23 | 25 | 5 |
| SF125 | TPV UL94HB | 0.8-1.8 | PP UL94V2 | 2 | 7.9-8.0 | 18 | 20 | 15 |
| SF126 | TPV UL94HB | 0.5-1.2 | PP UL94V2 | 2 | 8.0-8.1 | 18 | 20 | 18 |
| SF128 | TPV UL94HB | 0.8-1.5 | PP UL94V2 | 2 | 7.9-8.0 | 18 | 20 | 15 |
| SF130 | PP UL94HB | 0.8-1.5 | PP UL94V2 | 2 | 7.6-7.85 | 23 | 25 | 5 |
